About US

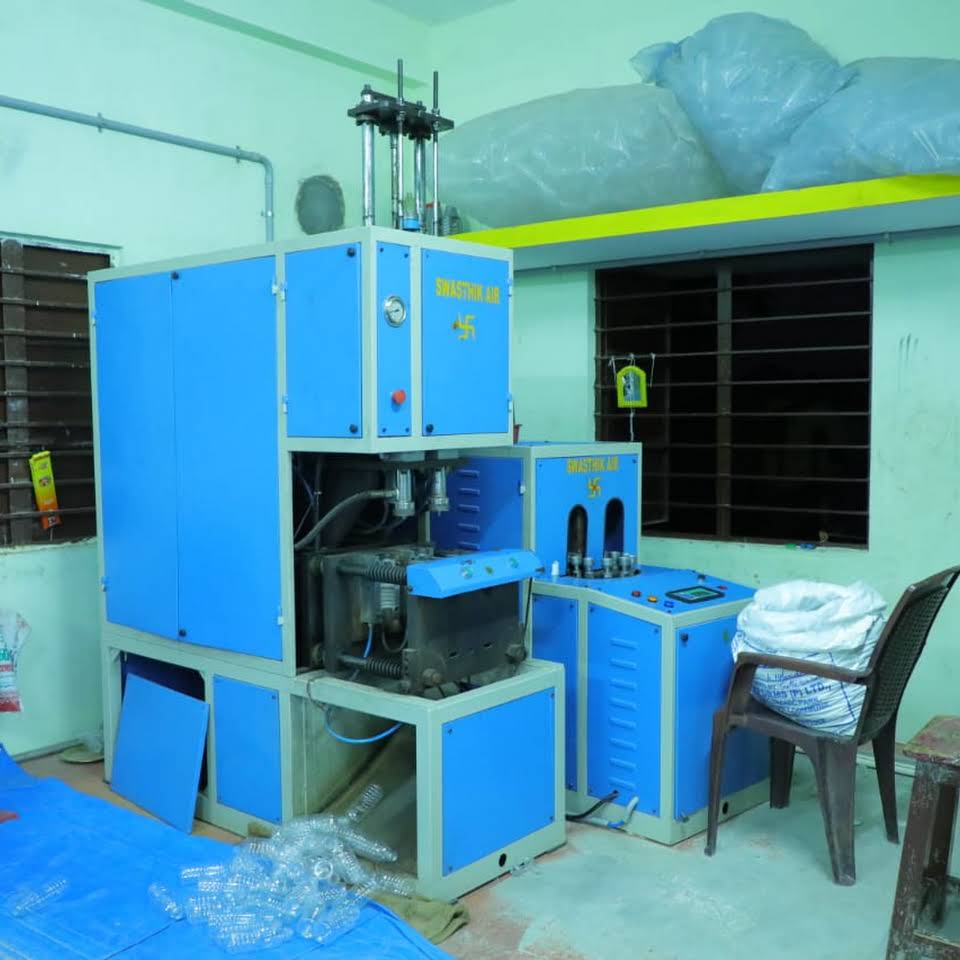

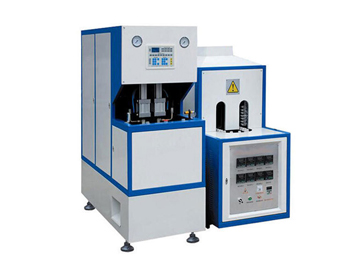

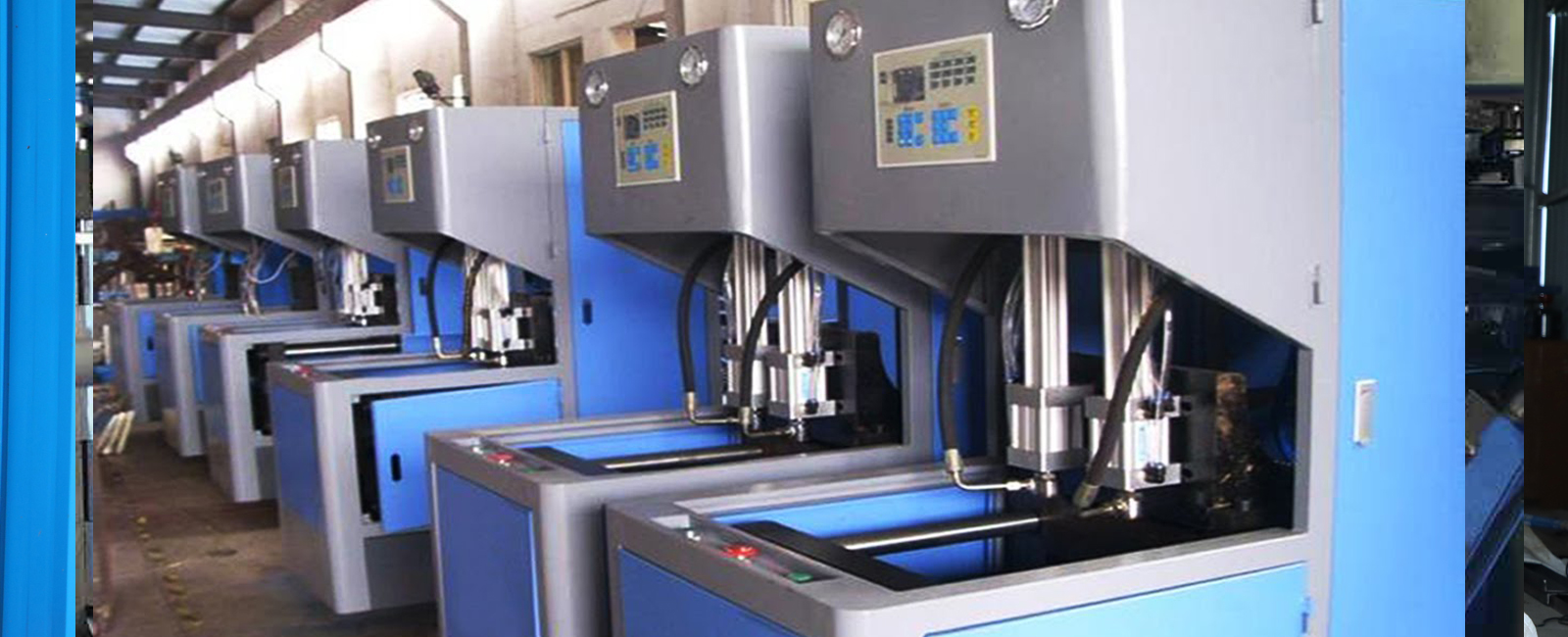

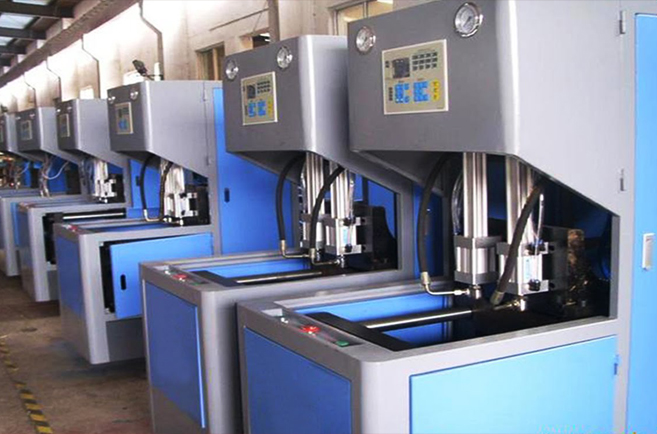

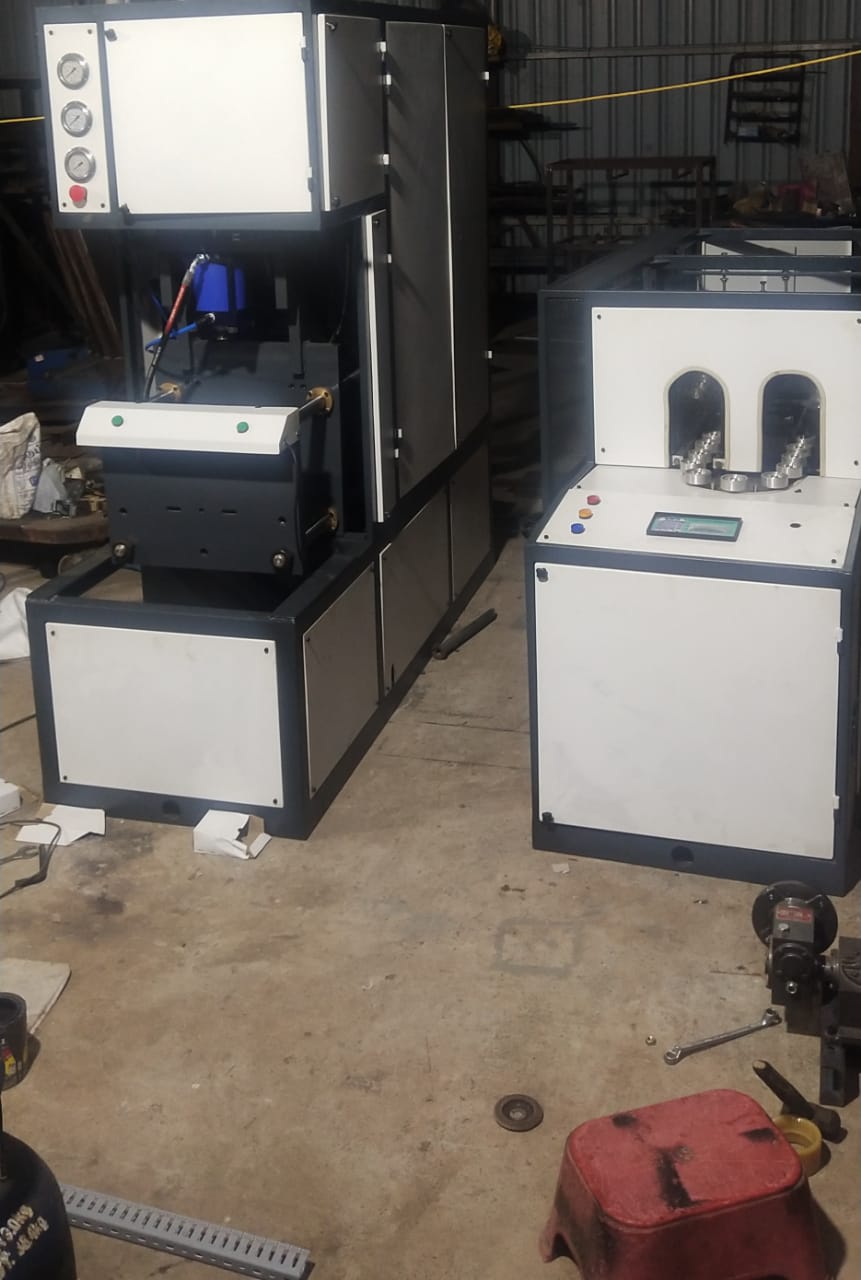

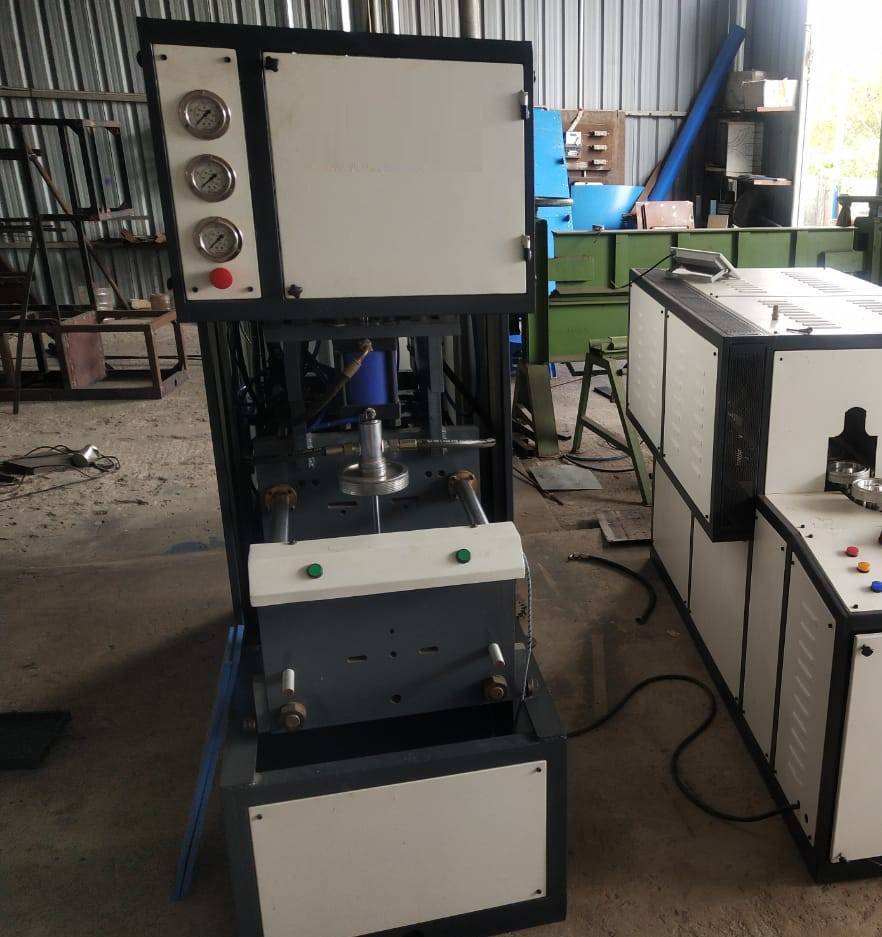

We are one of the leading Manufacturer of blow molding machinery in pattanur. We are completely committed to producing the highest quality blow molding machinery and making sure our customers know that they come first. We had developed this Pet Blowing Machines, Pet Compressor, Chiller & Air Dryers for getting higher production in minimum investment. We had simplified the technology of the these Machines which will help our buyer to use and maintain on his own (without our help).This machine is very useful to blow water bottle up to 2ltr, and pharmaceutical bottle up to 1ltr. We had given additional option to blow soft drink bottle up to 600ml in the same machine in a manual mode.
Services
Check out our services
SPECIFICATIONS | UNIT |
AIR | AIR | AIR | AUTO DROP |
---|---|---|---|---|---|
Operation Pressure |
Kg/cm2 |
7 |
7 |
7 |
7 |
Blowing Pressure |
Kg/cm2 |
26 |
26 |
26 |
26 |
SPECIFICATIONS | UNIT |
AIR | AIR | AIR | AUTO DROP |
---|---|---|---|---|---|
Total Consumption Power |
KW |
17.5 |
19.5 |
11.5 |
17.5 |
Heating Power |
KW |
16 |
16 |
9.00 |
14.00 |
Conveyor Motor + Blower |
KW |
1.5 |
3.5 |
1.5 |
3.5 |
Number of Lamps |
Pcs |
8 |
8 |
6 |
7 |
SPECIFICATIONS | UNIT |
AIR | AIR | AIR | AUTO DROP |
---|---|---|---|---|---|
Product Height |
MM |
350 max |
350 max |
300 max |
350 |
Container Volume |
ML |
60 min |
1000 min |
30 min |
60 min |
Neck Outer Dia (max) |
MM |
25-46 |
25-120 |
19-30 |
25-30 |
Product Outer Dia(max) |
MM |
110 |
190 |
90 |
110 |
Theoretical Production |
pcs/Hr |
800 |
275-700 |
750 |
1200 |
SPECIFICATIONS | UNIT |
AIR | AIR | AIR | AUTO DROP |
---|---|---|---|---|---|
Cavity Pitch |
MM |
150 |
150 |
150 |
150 |
Mould Thickness |
MM |
150 min |
150 min |
150 min |
170 |
Clambing Stroke |
MM |
150 max |
250 max |
150 max |
150 |
Stretching Stroke |
MM |
400 max |
400 max |
350 max |
400 |
No. Of Cavity |
Nos |
Two |
Two for bottle |
Two |
Two |
Air Specifications
Compact design for space saving.
High quality Cylinders and Valves for Trouble free Operation.
Machine maintenance, testing and production have manual and auto mode.
Geniune parts are used to enhance machine life.
Phillips 16 bit XAG-49 Micro Processor
Separate pressure adjustable valves are given for high pressure.
Low pressure system pressure.
One Operator One Machine.
Inbuilt cooling system for Neck cooling, Mould cooling and oil cooling.
One conveyor can be used for two blowing machine.
Products
Our Exclusive Top Quality Products

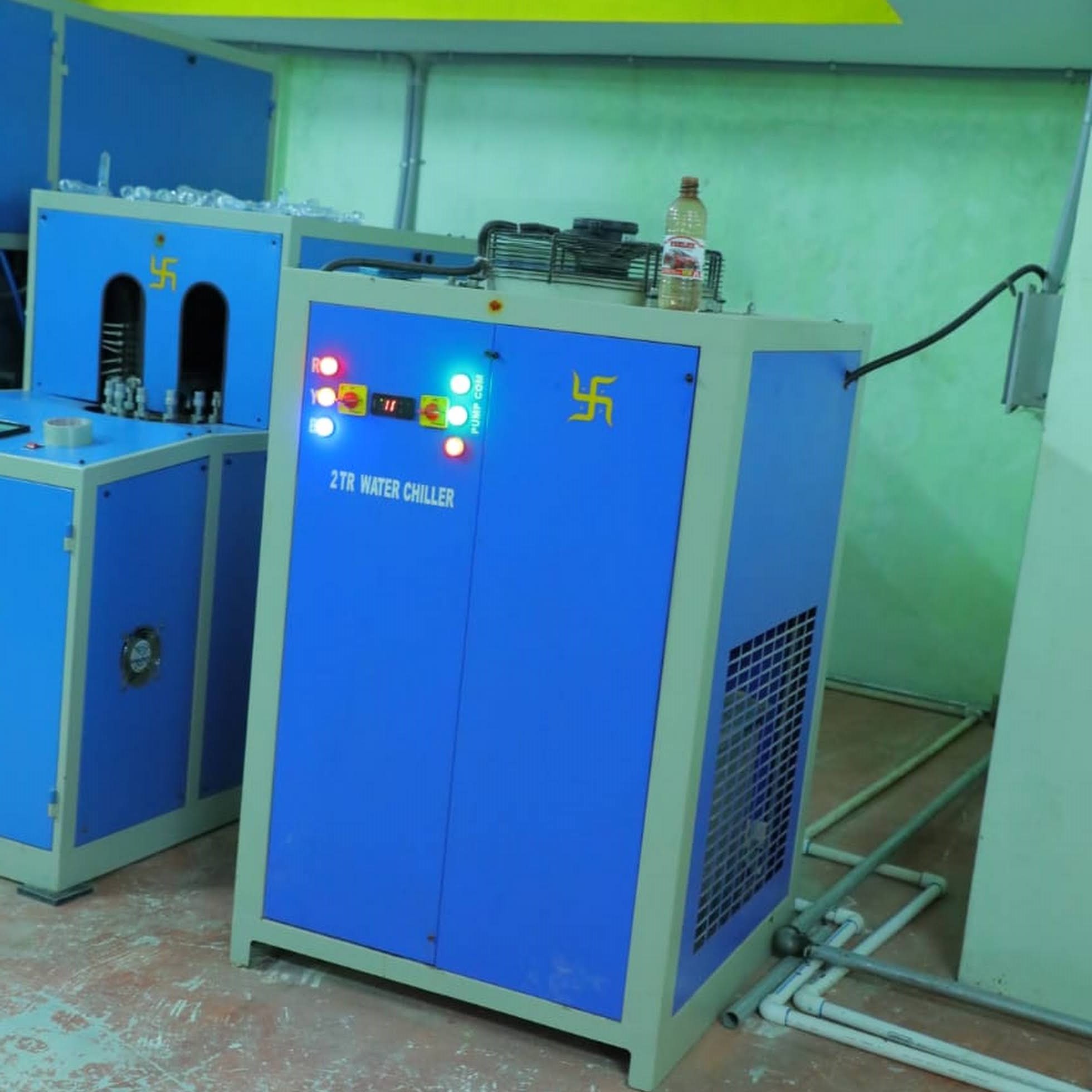

Chiller

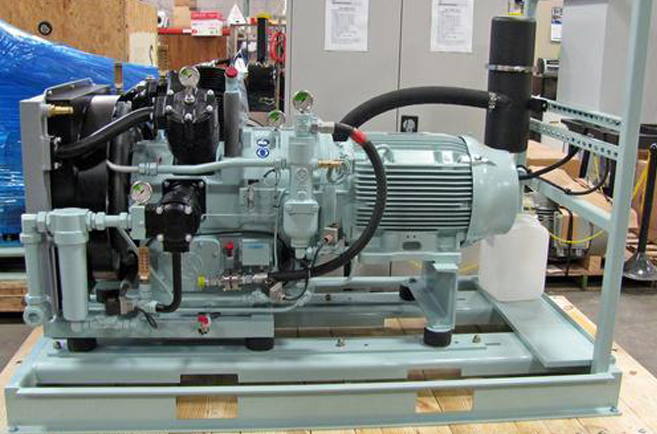

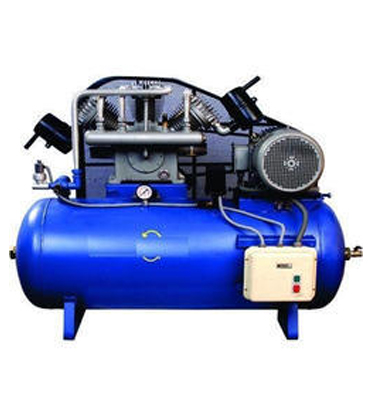

Air Compressor

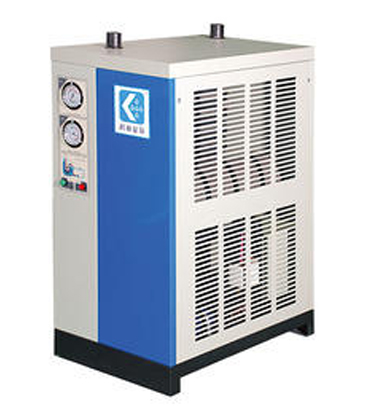

Air Dryers
Air Compressor
Testimonials
What our Customers say
Contact
Location:
No 8 ,Ground Floor, Pillaiyar koil street, Velmurugan Nagar, Kuyavarpalayam, Puducherry, 605013
